Description

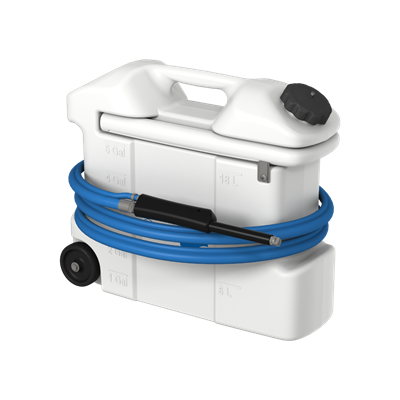

5-gallon air-powered, portable, pre-mix foam unit. Configurable with Viton, Kalrez, or Santoprene seals and color options for hose and lid.
Features:
• Draws from pre-mixed solution
• Powered by compressed air
• Hinged back plate provides tool-free access to components
• Quick-change pump
• Santoprene, Viton, or Kalrez pump seals for chemical compatibility
• Natural color tank for easy visibility of product levels
• Pull out handle for portability
• Integrated hose wraps
• In-line strainer to protect pump from debris
• Anti-kink hose protection
Specifications:
• Power type: Compressed air
• Chemical pickup type: Draws from pre-mixed solution
• Number of products unit can draw from: One product
• Suction line length/diameter: 3/8 in. (9.5 mm) inside diameter
• Capacity: 5 gallons (18.93 liters)
• Discharge hose diameter/length: 20 ft. (6 m) hose, with 1/2 in. (12.7 mm) inside diameter
• Discharge wand/tip type: 7 in. (17.8 cm) stainless steel wand with zero tip and ball valve
• Output distance: 15-20 ft. (4.6 to 6 m)
• Output volume: 15-30 gal/min (57 to 144 l/min) of foam
• Flow rate*: 2 gal/min (7.6 l/min)
• Pump seals: Santoprene, Viton, or Kalrez
• Wheel type: Two 3 inch non-marking wheels
*Dilution rates and flow rates given are based on chemicals with viscosity of water and factory air pressure settings.
Requirements:
Compressed air requirements: 40-80 psi (3-5 bar) with 5-10 cfm (141-283 l/min)
liquid temperature range: 40-100˚F (4.4-37˚C)
Chemical compatibility: Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.
