Description

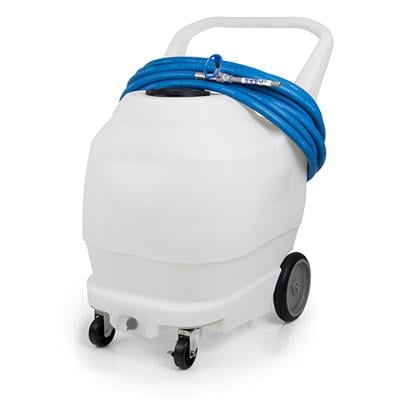

50 gallon air-powered, portable, pre-mix foam unit. Configurable with Viton, Kalrez, or Santoprene seals and color options for hose and lid.
Features:
• Draws from pre-mixed solution
• Powered by compressed air
• Hinged back plate provides tool-free access to components
• Quick-change pump
• Pump seal material options Santoprene, Viton, or Kalrez
• Natural color tank for easy visibility of product levels
• Hinged lid
• Front-facing drain
• In-line strainer to protect pump from debris
• Anti-kink hose protection
Specifications:
• Power type: Compressed air
• Chemical pickup type: Draws from pre-mixed solution
• Number of products unit can draw from: One product
• Suction line length/diameter: 3/8 in. (9.5 mm) inside diameter
• Capacity: 50 gallons (189.27 liters)
• Discharge hose diameter/length: 50 ft. (15.24 m) hose, with 3/4 in. (19 mm) inside diameter
• Discharge wand/tip type: 7 in. (17.8 cm) stainless steel wand with zero tip and ball valve
• Output distance: 25-30 ft. (7-9 m)
• Output volume: 20-45 gal/min (75-170 l/min) of foam
• Flow rate*: 2 gal/min (7.6 l/min)
• Pump seals: Santoprene, Viton, or Kalrez
• Wheel type: Two 10 inch non-marking wheels, two 5 inch casters with lock
*Dilution rates and flow rates given are based on chemicals with viscosity of water and factory air pressure settings.
Requirements:
Compressed air requirements: 40-80 psi (3-5 bar) with 5-10 cfm (141-283 l/min)
liquid temperature range: 40-100˚F (4.4-37˚C)
Chemical compatibility: Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department at 714-585-5690.
